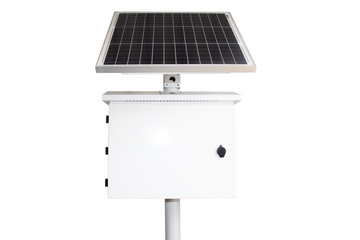

Solar Caddy® 100

Stainless Steel Metal enclosure with waterproof door, Can hold: 1 x 100ah Lithium / Gel battery OR 3 x 50ah Lithium Batteries, Mounting for Switch (Switch not supplied), Mounting for fuse box (Fuse box supplied), Strap down for battery, Solar panel; 160W Mono crystalline, Solar Panel Bracket Stainless steel to mount 160W watt solar panel, Fuse box 6-way with cover, 5Ax2, 10Ax2, 20Ax2 (pull out fuses that are stocked at any hardware store), 20Amp Solar Charge Controller MPPT, (connects with: Wi-Fi dongle, Set of Battery lead cable 6mm x1 Meter each with connector x2 (red and Black), Set of Solar Cable 6mm x1 Meter each, Set of MC4 connectors.

Add On

Wi-Fi Adapter 2.5G RJ45 D – The Wi-Fi 2.4G RJ45 D Wi-Fi adapter is mainly used for real-time transmission of various power generation data from the MPPT controllers to the cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.

 Bluetooth Adapter RJ45-D – The Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy)technology, BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices. Support Communication via the Phone App. Directly powered via communication port. Up to 10 Meters of communication distance.

 TCP-306 - EPEVER-TCP-306, serial device. The TCP 306 network serial port adapter connects with devices via the RS485 interface and TCP network communication. It transfers data to the cloud platform, enabling remote monitoring, parameter setting, and data analysis of our solar controllers. It also allows for simple and convenient operation through the PC configuration tool to modify TCP module IP addresses, TCP server, TCP client modes, and more.

Specifications on request.
